压力传感器86A系列

The 86A is a small profile, media compatible, piezoresistive  silicon pressure sensor packaged in a 316L stainless steel  housing.

The 86A is designed for O-ring mounting. The sensing  package utilizes silicone oil to transfer pressure from the 316L  stainless steel diaphragm to the sensing element.

The 86A is designed for high performance, low pressure  applications. A custom ASIC is used for temperature  compensation, offset correction, and provides an amplified output  of 0.5 to 4.5V.

For a similar sensor with a plastic threaded fitting, refer to the LM  pressure transducer.

FEATURES

 O-Ring Mount

  -20ºC to +85ºC Operating Temperature Range

  ±1.0% Pressure Non Linearity

 Down to ±3.0% Total Error Band   Solid State Reliability  APPLICATIONS

 Level Controls

 Tank Level Measurement

 OEM Equipment   Corrosive Fluids and Gas Measurement Systems

 Sealed Systems   Manifold Pressure Measurement

 Barometric Pressure Measurement

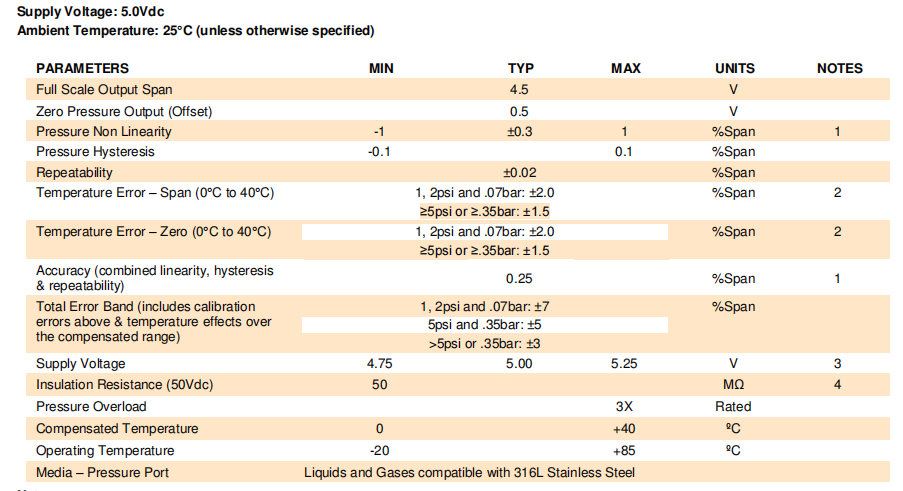

Notes

 1. Best fit straight line.

 2. Over the compensated temperature range with respect to 25°C.

3. Guarantees output/input ratiometricity.

4. Between case and sensing element.

5. The maximum pressure that can be applied to a transducer without rupture of either the sensing element or transducer.
